Pipe Cross

Category : Steel Pipe Fittings

Keywords: Equal cross,Unequal cross, Cross pipe, Socket cross, Short cross, Forging cross

Size: NPS from 1/2'' to 36'', DN from 15 to 900, WT: 2-80mm, SCH 40/80/XXS

Standard & Grade: DIN/3A/SMS/IDF/IOS/RJT

Material: Carbon Steel --- ASTM A234 WPB/WPC, ANSI B 16.9, ASTM A105/A106/A53;API 5L GR.B/A671-CC-70/A515-50/A135-A/A179-C;Stainless Steel --- ASTM 403 304/304L,316/316L,316Ti,321,317L,310S ;Alloy Steel --- ASTM A234 WP1/5/9/11/12/22/91

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Usage: Oil and gas transmissions;Petroleum and Oil refining;Water treatment systems;Chemical Industries; Sanitary tubing;Power stations;Machines and equipment;Heat Exchange

  • Description
  • Specification
  • Standard
  • Process
  • Packing

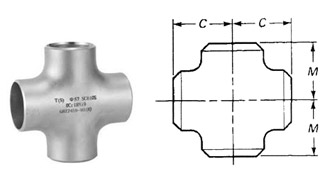

A pipe cross is a kind of pipe fitting that be used in the place where four pipes meet together. The pipe cross may have one inlet and three outlets, or there inlets and one outlet. The diameter of the outlet and inlet can be the same and can also be different. That is to say, straight cross and reducing cross are both availabe.

Pipe cross is a fitting that used in the place where four pipes meet with the same diameter include:

Reducing cross used for connecting four pipes, the main pipes with the same size, but the dimensions of the branch diameter is smaller than the main pipes.

Equal cross in the place where four pipes meet with the same diameter.

Size range: 1/2 to 72 inches

Pressure: SCH5 to SCH160

Pipe Cross Material

Stainless Steel Pipe Cross: ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Pipe Cross: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Pipe Cross: ASTM A420 WPL3, A420 WPL6

Alloy Steel Pipe Cross: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP

Duplex Pipe Cross: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462

Nickel Alloy Pipe Cross: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Pattern

Weld

Seamless

Nominal size

1/2”-48” (DN15-DN1200)

1/2”-20” (DN15-DN500)

Wall thickness

2~100mm

2~50mm

Bend radius

SCH5S-SCH160 ,XXS

SCH5-SCH160

Type

cross/reducing cross

cross/reducing cross

Nominal Pipe Size (NPS)

DN

Outside Diameter at Bevel

Center- to-End

Run.C

Outlet. M[Notes(1) and (2)]

1/2

15

21.3

25

25

3/4

20

26.7

29

29

1

25

33.4

38

38

1-1/4

32

42.2

48

48

1-1/2

40

48.3

57

57

2

50

60.3

64

64

2-1/2

65

73.0

76

76

3

80

88.9

86

86

3-1/2

90

101.6

95

95

4

100

114.3

105

105

5

125

141.3

124

124

6

150

168.3

143

143

8

200

219.1

178

178

10

250

273.0

216

216

12

300

323.8

254

254

14

350

355.6

279

279

16

400

406.4

305

305

18

450

457

343

343

20

500

508

381

381

22

550

559

419

419

24

600

610

432

432

26

650

660

495

495

28

700

711

521

521

30

750

762

559

559

32

800

813

597

597

34

850

864

635

635

36

900

914

673

673

38

950

965

711

711

40

1000

1016

749

749

42

1050

1067

762

711

44

1100

1118

813

762

46

1150

1168

851

800

48

1200

1219

889

838

GENERAL NOTES: All dimensions are in millimeters.

(a). Outlet dimension M for NPS 26(DN 650) and large is recommended but not required.
(b). Dimensions applicable to crosses NPS 24(DN 600) and smaller.

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9 – Factory-Made Wrought Fittings Butt welding

ASME B16.25 – Butt welding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Butt welding Returns

MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant
