What is an api 5l lsaw pipe and why is it important for your pipeline projects?

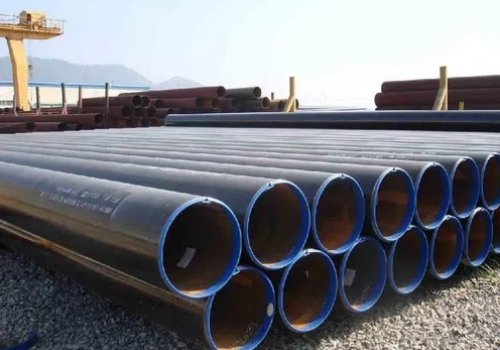

Pipeline failures cost money and delay projects. You need reliable materials for high-pressure systems. Our top-grade pipes solve these exact problems. An api 5l lsaw pipe is a Longitudinal Submerged Arc Welded pipe made to American Petroleum Institute standards. We use it to transport oil, gas, and water safely. These pipes handle high pressure and severe conditions perfectly. They come in large diameters with strong weld joints.

Finding the right steel pipe feels overwhelming. I will break down everything you need to know about these pipes right now.

What are the key specifications and grades of an api 5l lsaw pipe?

Wrong pipe specs ruin entire project budgets. You face strict requirements from your engineering team. Let us look at the exact standards you need. The API 5L standard classifies LSAW pipes into PSL1 and PSL2 levels. PSL1 covers basic requirements. PSL2 offers stricter controls on chemical limits and mechanical strength. Common grades include Grade B, X42, X52, X60, X65, X70, and X80. I often talk to buyers from Europe. They need clear data. We supply a huge range of sizes and grades to meet their demands. Let us look closer at the dimensions and grades. Our factory produces outer diameters from 12 inches to 150 inches. We make wall thicknesses from Schedule 20 up to 250 millimeters. You can ask for customized lengths. We provide 5 to 18 meters long pipes.

Pipe Specifications at a Glance

Feature	Details
Pipe Type	LSAW (Longitudinal Submerged Arc Welded)
Standard	API 5L / ISO 3183
Outer Diameter	219 mm – 1820 mm
Wall Thickness	5.0 mm – 50 mm (up to 250mm on request)
Pipe Ends	Plain, Beveled, Coupling

Understanding PSL1 and PSL2

You must choose between PSL1 and PSL2. PSL1 is simple. It works for standard fluid transport. PSL2 is different. It requires strict chemical limits. It needs impact testing. We always suggest PSL2 for critical gas lines. European projects almost always demand PSL2. We supplied PSL2 X65 pipes for a major gas network in Europe last year. The project went very smoothly. Our deep inventory means we can ship these grades fast.

How does the chemical composition affect an api 5l lsaw pipe?

Weak steel causes pipe cracks under pressure. Your clients worry about material quality. We control the chemical mix strictly to stop this. The chemical composition decides the strength and flexibility of the pipe. Elements like Carbon and Manganese give the steel its hard power. We control Sulfur and Phosphorus tightly. Low levels of these elements stop the steel from breaking easily.

Steel making is like baking. You need the right recipe. The API 5L standard sets strict rules for this recipe. Let us break down the chemistry for PSL2 pipes. You need to know this to trust the material.

Key Chemical Elements

Carbon makes the steel hard. Too much carbon makes welding difficult. We keep carbon low in PSL2 grades. Manganese adds strength and toughness. It helps the steel survive cold weather. Phosphorus and Sulfur are bad elements. They make steel crack easily. We remove them as much as possible.

PSL2 Chemical Limits

Grade	Carbon Max (%)	Manganese Max (%)	Phosphorus Max (%)	Sulfur Max (%)
BR / BN	0.24	1.2	0.025	0.025
BQ	0.18	1.4	0.025	0.015
BM	0.22	1.2	0.025	0.015

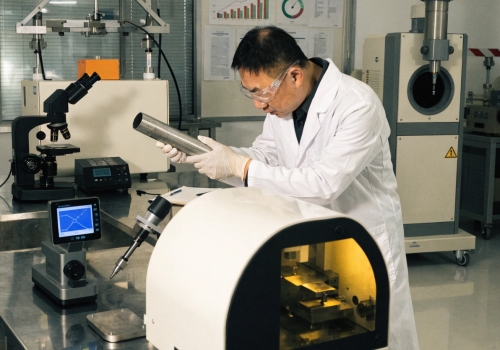

I remember a strict client from a European construction firm. They asked for very low sulfur for a winter project. We showed them our test reports. Our steel passed easily. We test every batch. We check the carbon equivalent too. This ensures your team can weld the pipes together without cracking. Quality control is our main job.

How do we manufacture a strong api 5l lsaw pipe?

Bad welding leads to huge pipeline leaks. You lose sleep over manufacturing defects. We use the advanced JCOE process to guarantee perfect welds. We make LSAW pipes using the JCOE process. We mill steel plates and press them into J, C, and O shapes. We use double submerged arc welding for the main seam next. We expand the pipe mechanically to make it perfectly round.

Making a large pipe is a complex job. We have done this since 1996. Our factory uses top-level machines. Let us look at the steps.

The JCOE Process Steps

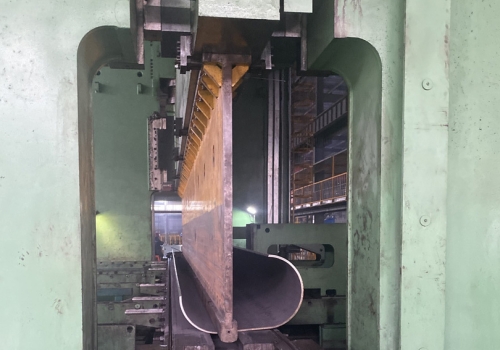

We prepare the hot-rolled plates first. We test them with ultrasound to find any hidden flaws. We mill the edges next. Smooth edges mean perfect welding later. We start the forming stage after that. We press the flat plate into a "J" shape. We bend the other side into a "C" shape. We press the whole plate into an "O" shape at the end.

Welding and Testing

Process Step	Action
Tack Welding	Holds the O shape together
Inside Welding	Submerged arc welding from the inside
Outside Welding	Submerged arc welding from the outside
Expansion	Cold expansion makes the pipe perfectly round
Testing	Hydrostatic and X-ray tests check for leaks

We test the pipes many times. We use X-rays on the welds. We fill the pipes with water under high pressure. This is the hydrostatic test. A buyer from Europe visited our factory last month. He watched our X-ray tests. He told me our process made him feel very safe. We pack the pipes carefully after painting them. We deliver them ready for your project.

Where can you use an api 5l lsaw pipe?

Finding one pipe for many jobs is hard. You waste time dealing with too many suppliers. Our pipes work across many different demanding industries. You can use our LSAW pipes for long-distance oil and natural gas pipelines. They are perfect for offshore subsea installations. Construction companies use them for structural piling. We supply them for water transport and large refinery projects too. You need a versatile product. Our pipes fit many roles. I have seen our pipes go all over the world. Our main market includes many European nations. We understand the high standards there. Let us look at where these pipes go.

Oil and Gas Transmission

This is the biggest use. High-pressure gas needs a thick wall. The wall must be very strong. Our PSL2 pipes handle this easily. We supply Fortune 500 oil companies. We ship thousands of tons for cross-country lines.

Construction and Infrastructure

Application Area	How It Helps
Structural Piling	Holds up heavy buildings and bridges
Offshore Platforms	Resists sea water and heavy waves
Water Supply	Moves large amounts of fresh water safely
Refineries	Moves hot and dangerous chemicals

I worked on a big port construction project in Europe recently. They needed large-diameter structural pipes fast. They chose us because we act as a one-stop supplier. We gave them the pipes. We gave them the fittings. We gave them the valves. We saved them a lot of time and money. They did not need to talk to five different factories. We handled everything. You can trust our mature project experience.

Conclusion

We provide top quality api 5l lsaw pipes for your most difficult projects. Our strict standards and vast experience ensure your pipeline runs safely and saves you money.
